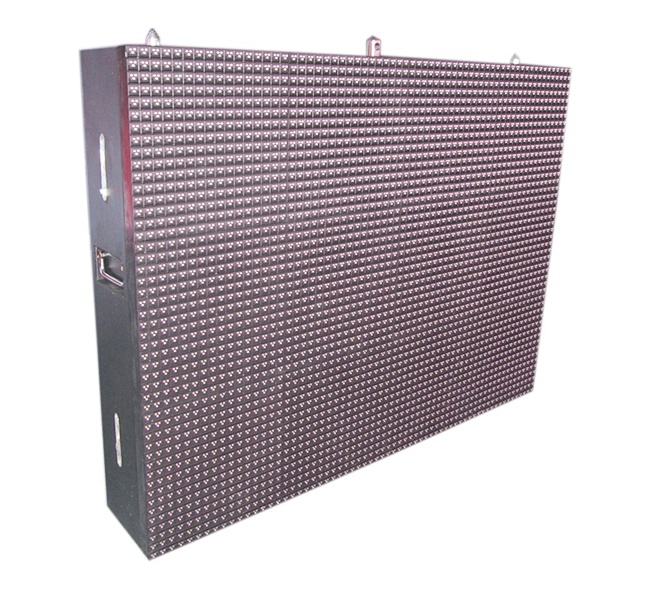

Product name : IStar P20 Outdoor Fixed install led display
Product No. : IStar P20 Outdoor Fixed install led display
Details:

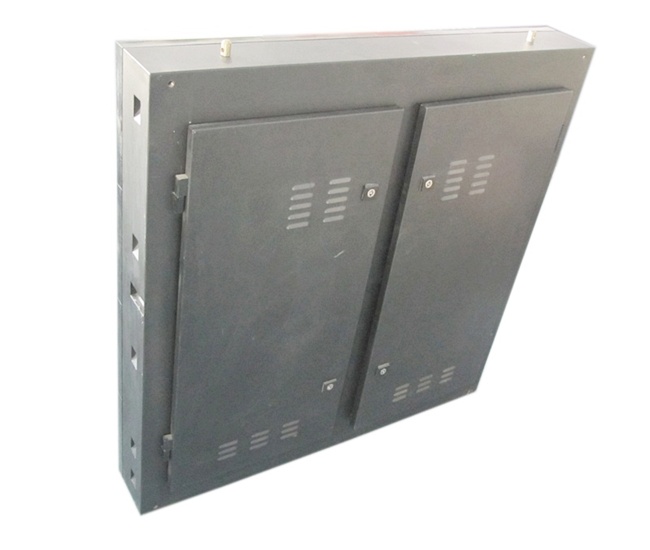

1. Tradition steel cabinet, stable and easy to use;
2. Anti-corrosion coating, ensures a long life time;
3. All the signal and power cables go through the cabinets inside, stable and safe;
2. Anti-corrosion coating, ensures a long life time;
3. All the signal and power cables go through the cabinets inside, stable and safe;
|
Unit Module
|
No.
|
STAR20
|
|
Pixel pitch
|
20mm
|
|
|
Pixel configuration
|
1R1PG1B
|
|
|
Size of module
|
320mm×320mm
|
|
|
Resolution of module
|
16×8
|
|
|
Density
|
2500dots/m²
|
|
|
Module power
|
27W
|
|
|
Main Parameter
|
Best viewing distance
|
>20m
|
|
Best viewing angle
|
≤110°
|
|
|
Max power consumption
|
<550W/m²
|
|
|
Colors
|
>16.7M
|
|
|
Gray scale
|
14bits
|
|
|
Color temperature
|
6500K
|
|
|
Control method
|
Syncronization
|
|
|
Driving device
|
Constant current
|
|
|
Driving method
|
Static Scaning
|
|
|
Frame frequency
|
>60Hz
|
|
|
Refresh frequency
|
≥600Hz
|
|
|
Brightness
|
>6000cd/M²
|
|
|
Working voltage
|
AC220V/110V±10%
|
|
|
Working temperature
|
-20℃~50℃±10％
|
|
|
Out-of control point
|
<0.0001
|
|
|
Brightness Control
|
256 grade
|
|
|
IP grade
|
Front IP65
|
|
|
Mtbf
|
>10,000hours
|
|
|
Life span
|
100,000hours
|
