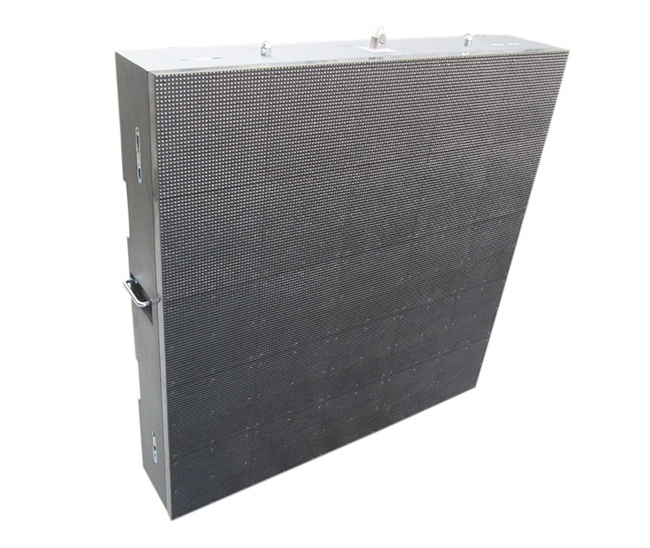

Product name : IStar P12 Outdoor Fixed Led screen
Product No. : STARFiP12
Details:

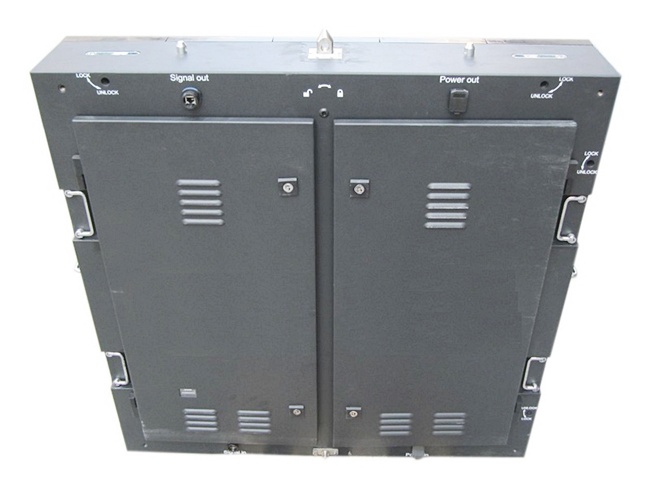

1.Two fasten locks at each side, makes the structure safe and strong;
2. Smaller size of cabinet can be easily transported;
3. Special clip fixes the signal cable to ensures a stable image;
|
Unit Module
|
No.
|
STAR12
|
|
Pixel pitch
|
12mm
|
|
|
Pixel configuration
|
1R1PG1B
|
|
|
Size of module
|
192mm×192mm
|
|
|
Resolution of module
|
16×16
|
|
|
Density
|
6944dots/m²
|
|
|
Module power
|
19W
|
|
|
Main Parameter
|
Best viewing distance
|
>12m
|
|
Best viewing angle
|
≤120°
|
|
|
Max power consumption
|
<500W/m²
|
|
|
Colors
|
>16.7M
|
|
|
Gray scale
|
14bits
|
|
|
Color temperature
|
6500K
|
|
|
Control method
|
Syncronization
|
|
|
Driving device
|
Constant current
|
|
|
Driving method
|
1/4 Scaning
|
|
|
Frame frequency
|
>60Hz
|
|
|
Refresh frequency
|
≥600Hz
|
|
|
Brightness
|
>5500cd/M²
|
|
|
Working voltage
|
AC220V/110V±10%
|
|
|
Working temperature
|
-20℃~50℃±10％
|
|
|
Out-of control point
|
<0.0001
|
|
|
Brightness Control
|
256 grade
|
|
|
IP grade
|
Front IP65 /Rear IP54
|
|
|
Mtbf
|
>10,000hours
|
|
|
Life span
|
100,000hours
|
