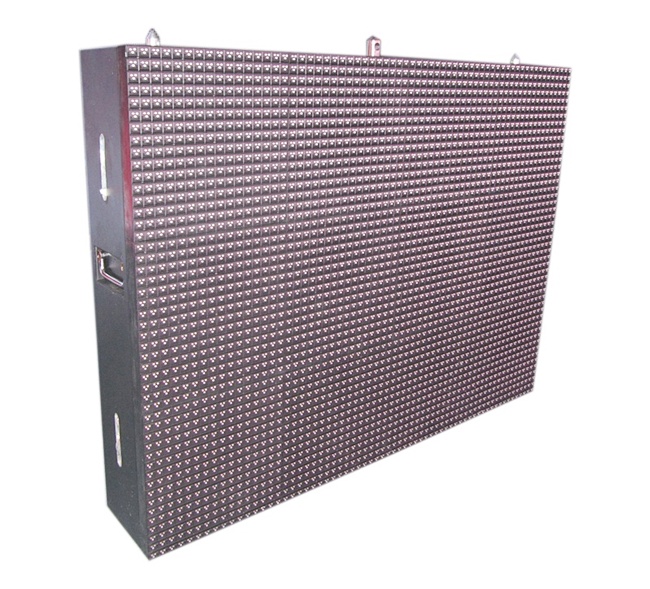

Product name : IStar P16 Outdoor Fixed install led display
Product No. : IStarFiP16
Details:
Key Benefit:
Light weight:
Light weight:
LED panel is made of aluminum extension frame , 44lbs per panel, and 74.8lbs per sqm, 32% less in weight than traditional LED panels.
|
N0.
|
STAR16
|
|
|
Unit Module
|
Pixel pitch
|
P16
|
|
Size of pixel
|
/
|
|
|
Pixel configuration
|
1R1G1B
|
|
|
Size of block module
|
DIP
|
|
|
Resolution of module
|
16X16
|
|
|
Density
|
3906dots/m²
|
|
|
Module power
|
50W
|
|
|

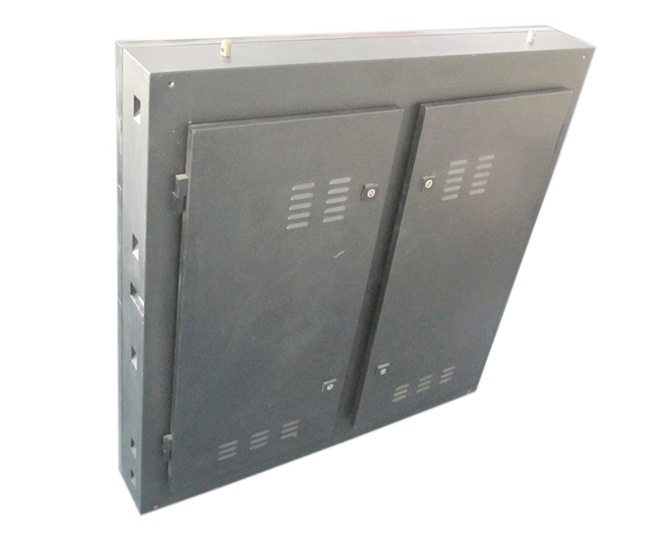

Cabinet
|
Cabinet material
|
Steel cabinet
|
|
Size of cabinet(l*h*t)
|
1024x1024x175mm
|
|
|
Weight of cabinet
|
48KG
|
|
|
Support hanging or not
|
NO
|
|
|
Main Parameter
|
Best viewing distance
|
＞16m
|
|
Best viewing angle
|
≥110°
|
|
|
Max power consumption
|
＜760W/m²
|
|
|
Colors
|
＞16.7M
|
|
|
Gray scale
|
14bits
|
|
|
Color temperature
|
6500K
|
|
|
Control method
|
synchronization
|
|
|
Driving device
|
constant current
|
|
|
Driving method
|
Static scaning
|
|
|
Frame frequency
|
＞60HZ
|
|
|
Refresh frequency
|
1000HZ
|
|
|
Brightness
|
＞7000cd/m²
|
|
|
Working voltage
|
AC220V/110V±10％
|
|
|
Working temperature
|
-20℃~50℃±10％
|
|
|
Out-of control point
|
＜0.0001
|
|
|
Brightness Control
|
256 grade
|
|
|
IP grade
|
Front IP65/Rear IP54
|
|
|
Mtbf
|
＞10,000 hours
|
|
|
Life span
|
100,000 hours
|
